Standard Frame System
Standard Frame System
Frames in PEB are mainly rigid frames – comprise of Taper Columns & Rafters, are built using the state of art technology. Splices plates are welded to the ends of the tapered sections & Flange is welded to Web.
Available in maximum range of shapes, layouts and sizes to meet the explicit needs of our valuable esteemed clients. PEB Frames are designed innovatively to deliver the optimum, long lasting durability performance, that fits accurately for efficient and economical constructions. We have engineered high efficient & flexibles frames to the client’s requirement.

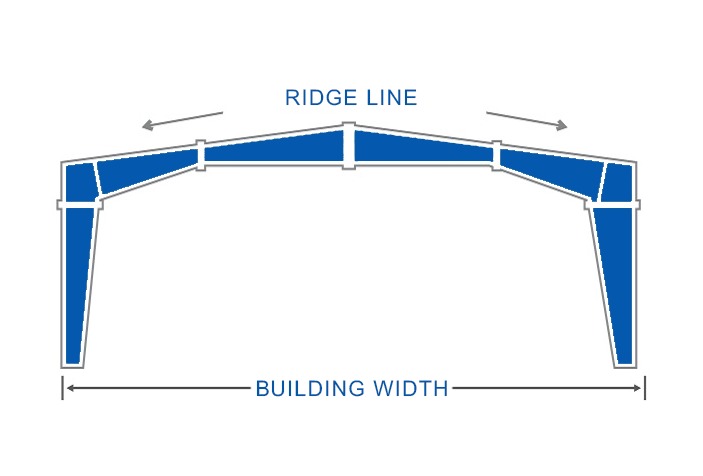

Tapered Column Clear Span (TCCS)
Rigid frame with Tapered column without any internal Support

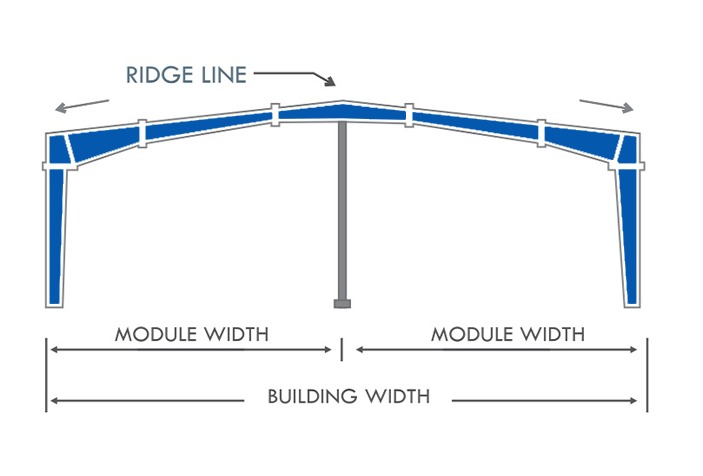

IC-I ( Multi Span II )
Rigid frame with one Intermediate Column Support at centre

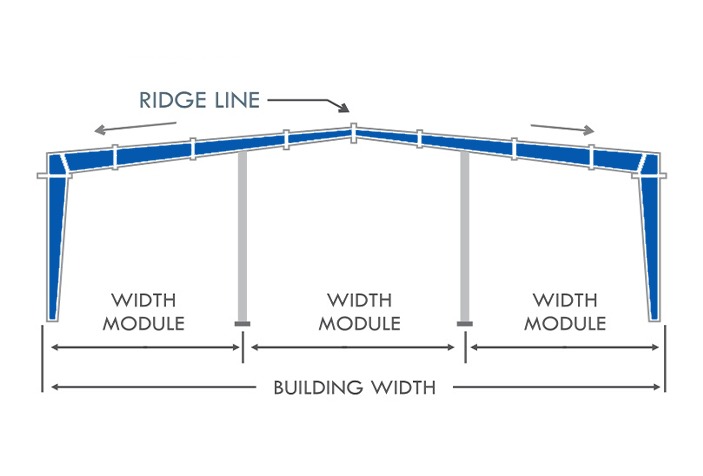

IC-II ( Multi Span III )
Rigid frame with Two Intermediate Column Support at center

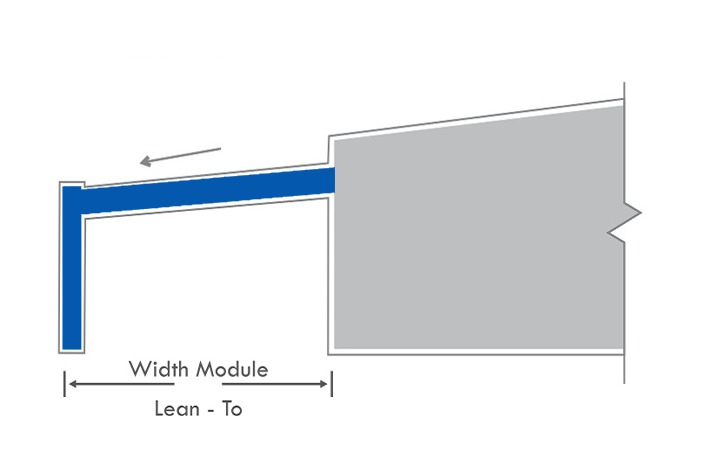

Lean - Too
Additional frame with one side column Support only

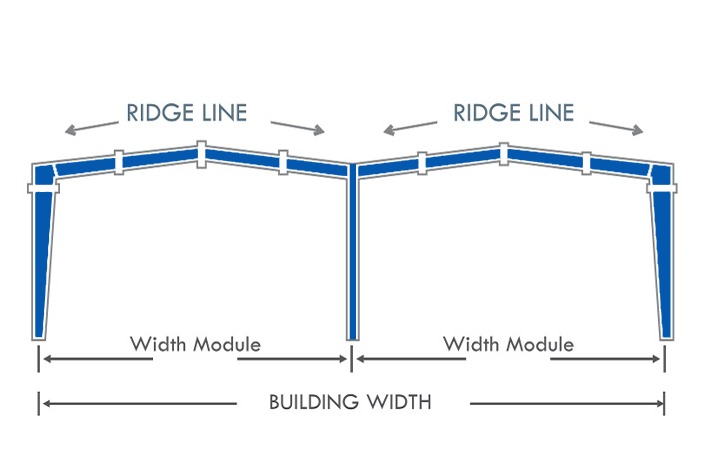

MG IC - I
Multi cable Structure with double Ridge.

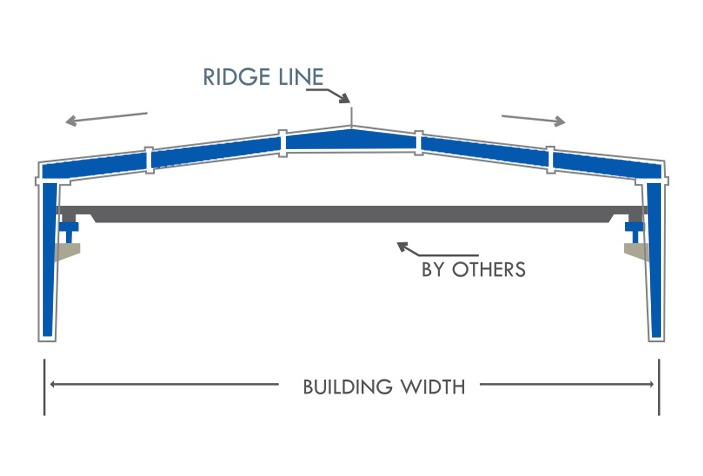

Clear Span with Crane
Rigid Frame with Straight Column and brackets for Resting EOT (Electric Overhead Travelling) Crane

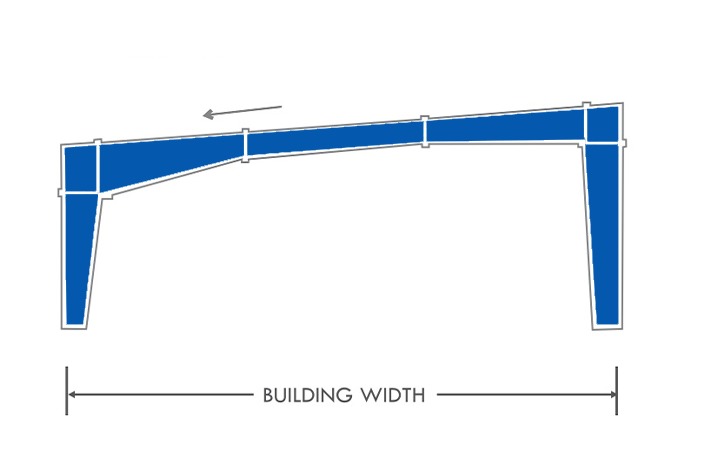

Mono Slope
Rigid Frame with One sided Slope Only

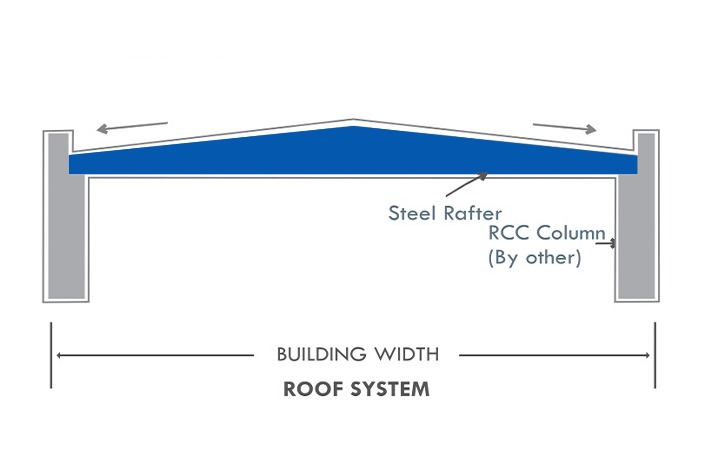

Rafter System
- Rigid Frame without any Colum Support, Rafters directly rest on RCC Columns.

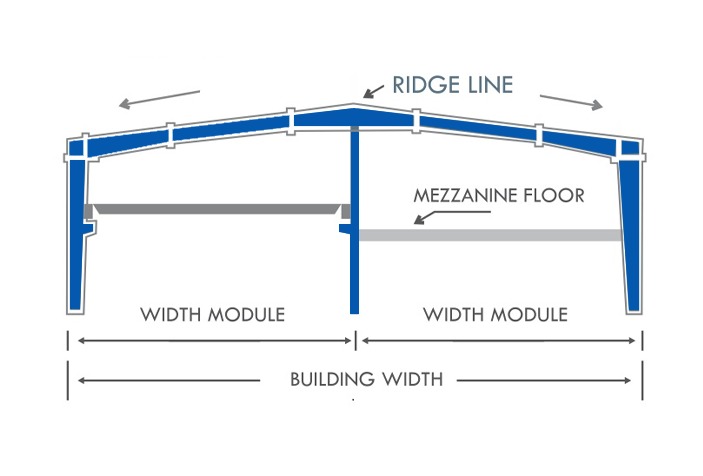

Multi Span with Crane & Mezzannine
Rigid Frame with EOT Crane in one width module and Mezzanine Floor in other width module.
Mezzanine Floor
Rigid frame with Mezzanine for office use or malterial Stacking
